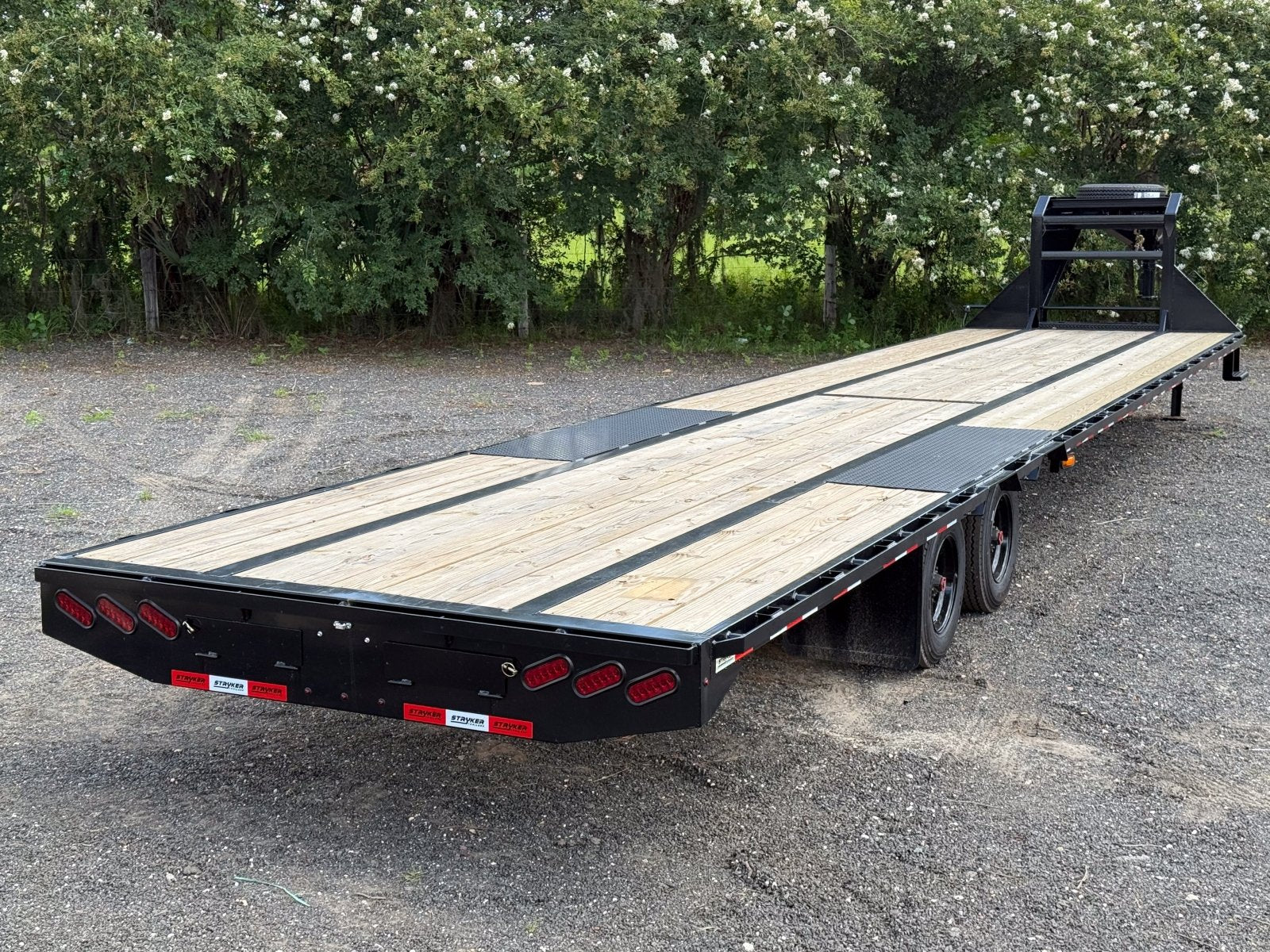

Stryker Hotshot Elite Non-CDL (2) 10k Axles 18ply tires De-Rated 12k GVWR

DIMENSIONS

LENGTH:

40'

WIDTH:

102"

WEIGHT RATINGS

GAWR:

10,000 lbs

GVWR:

12,000 lbs

ESTIMATED DRY WEIGHT:

7,050 lbs

ESTIMATED PAYLOAD:

4,950 lbs

FINISH

PAINT TYPE:

Powdercoat

PREP:

Steel Grit Blasted

COLORS:

Black, Gray, White, Light Grey, Red, Blue, Lime Green, Green, Orange

WARRANTY

AXLE WARRANTY:

5 Year Dexter Axle Warranty

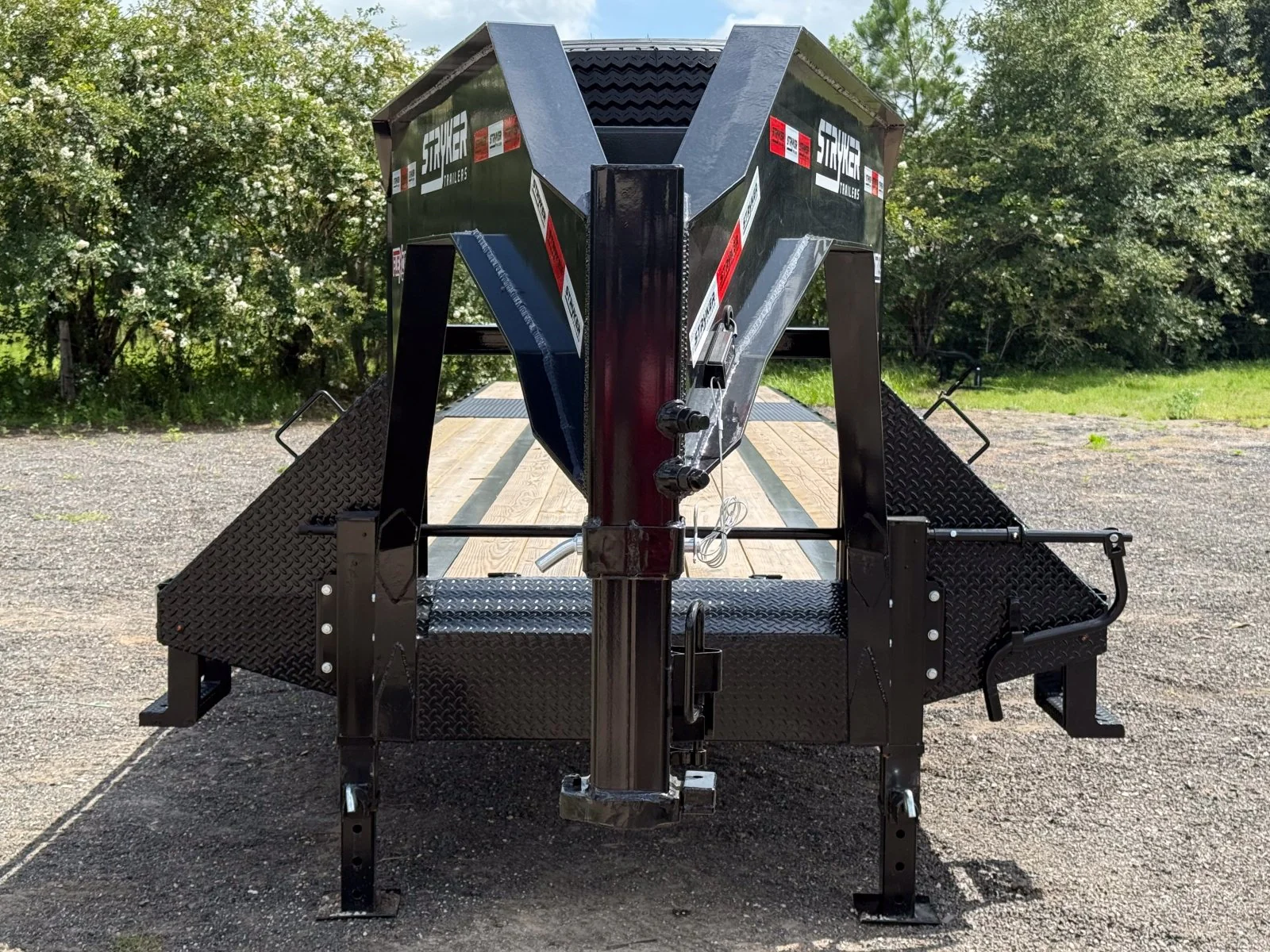

GOOSENECK

PULL TYPE:

Gooseneck

TONGUE:

Fabricated I-Beam

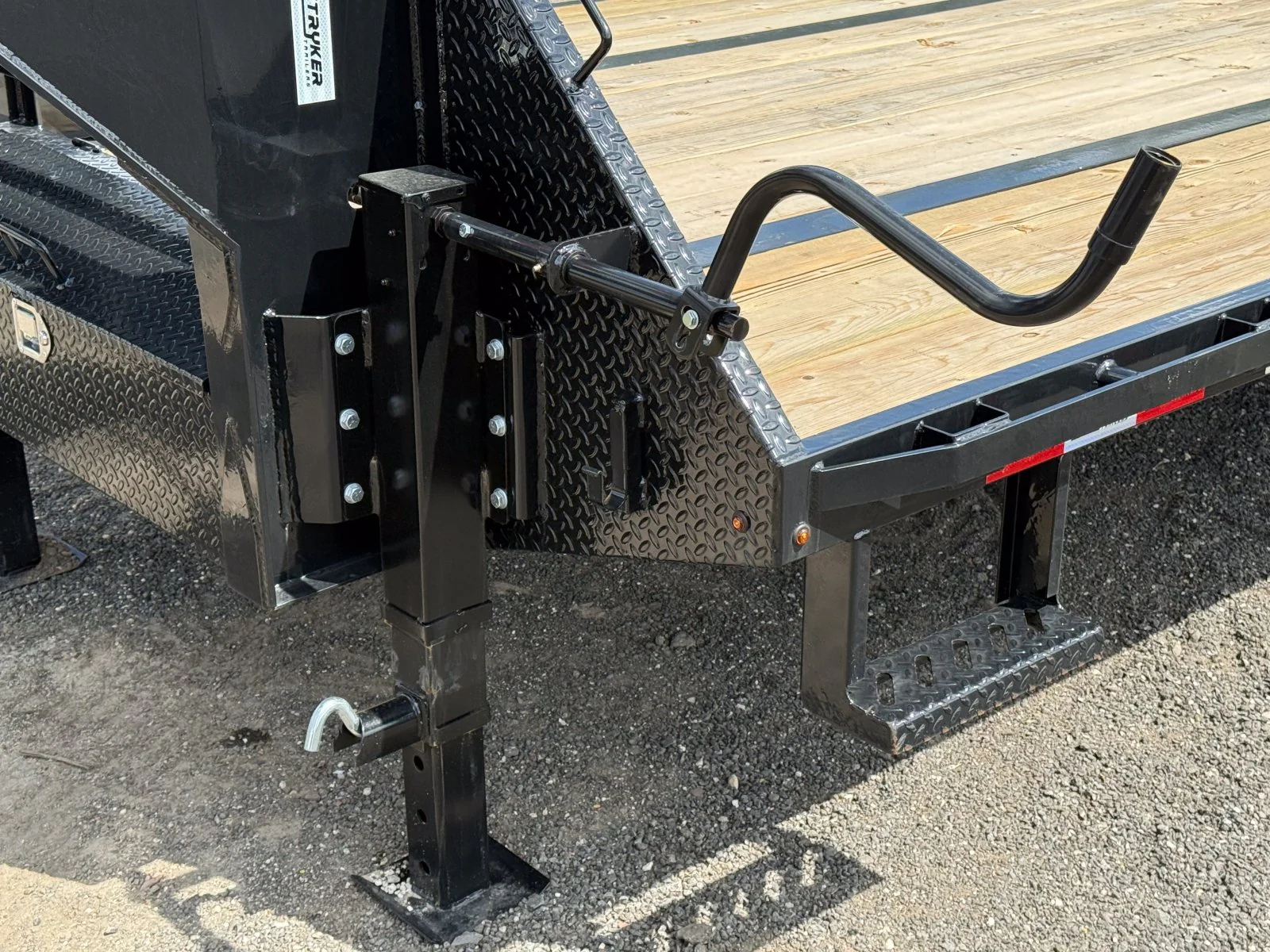

JACK:

1 Side Wind Drop Jack Legs (10,000 lbs)

STORAGE

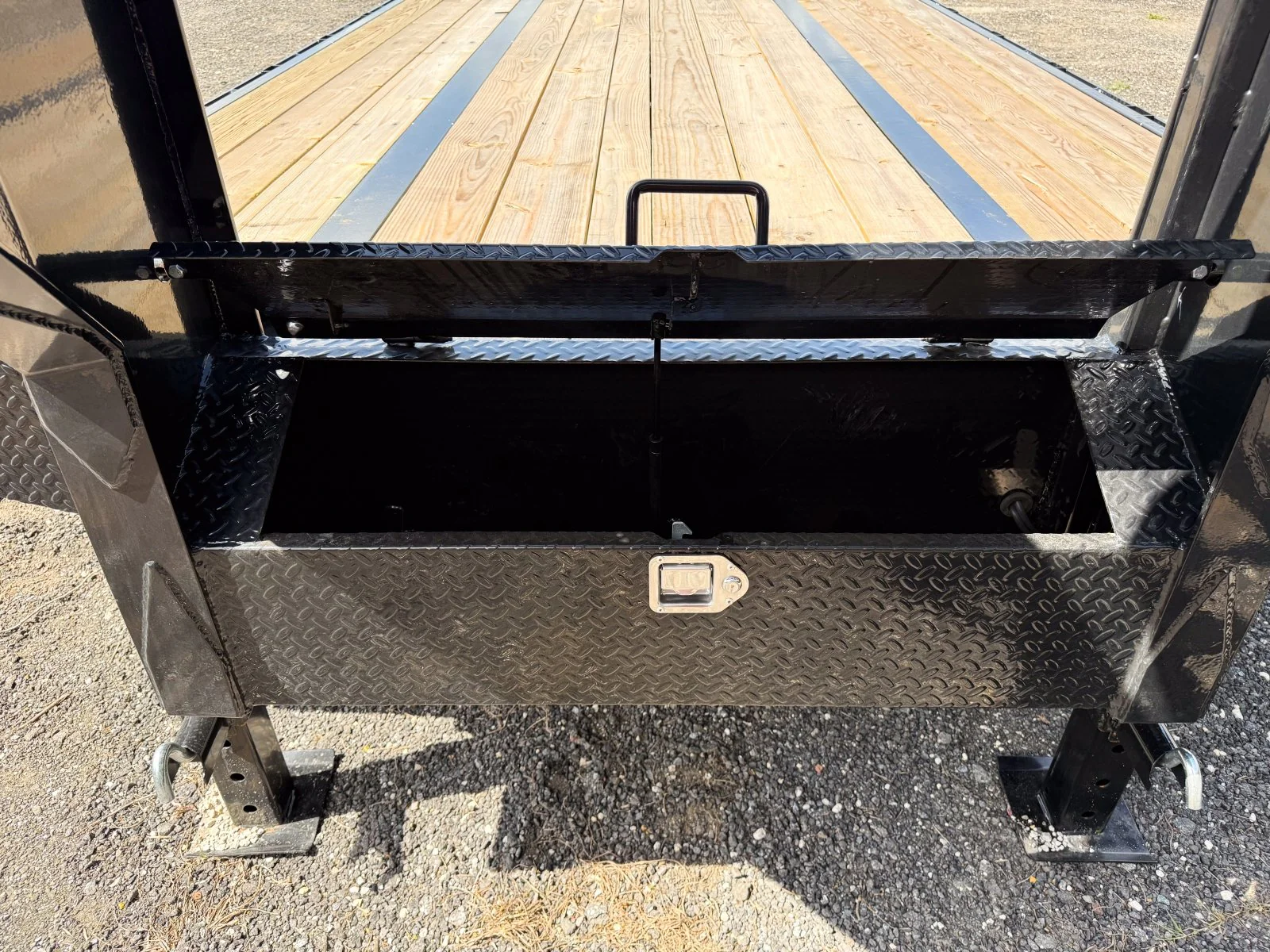

TOOLBOX:

Lockable Toolbox

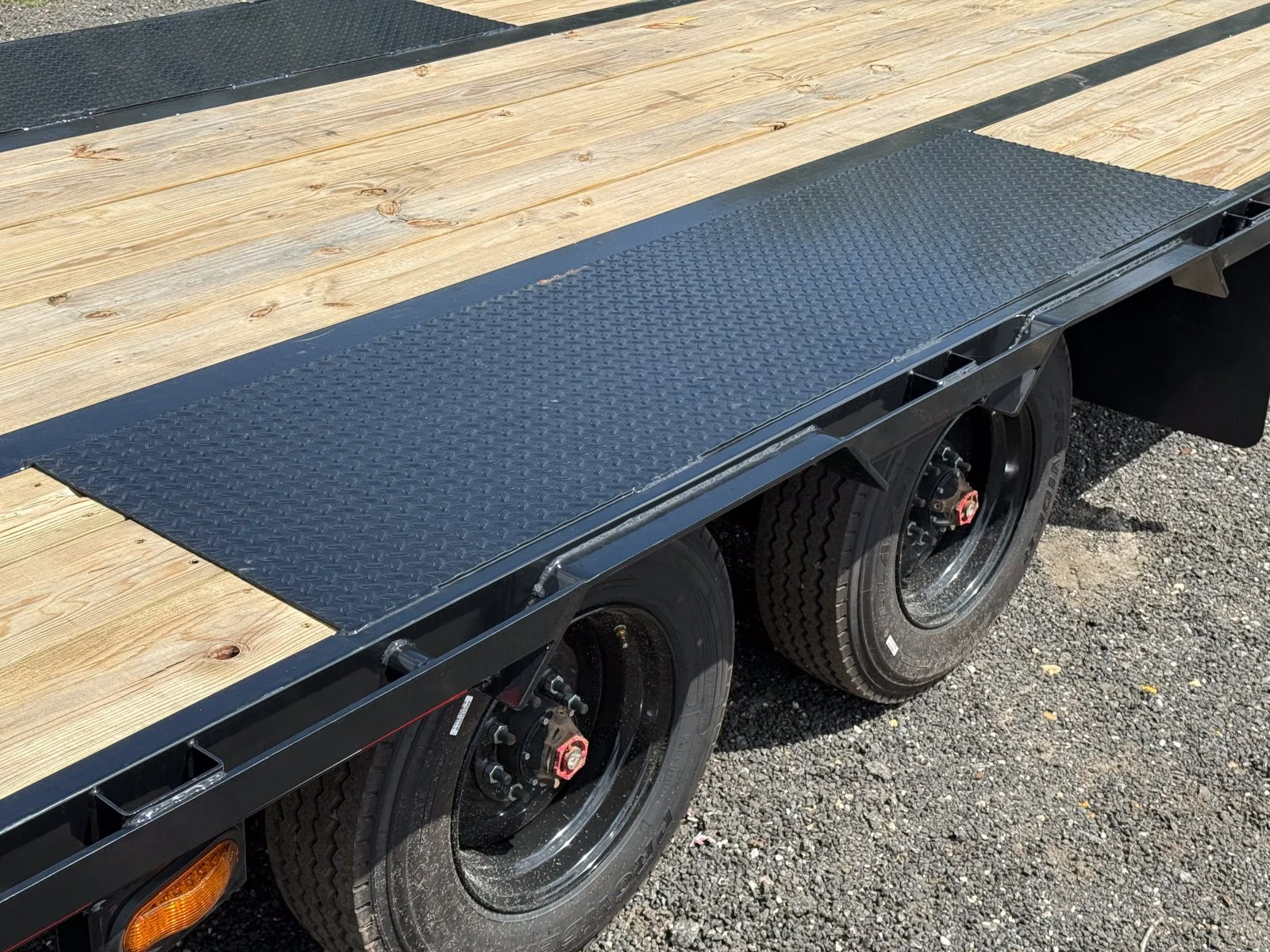

DECK & LOADING

DECK TYPE:

Wood

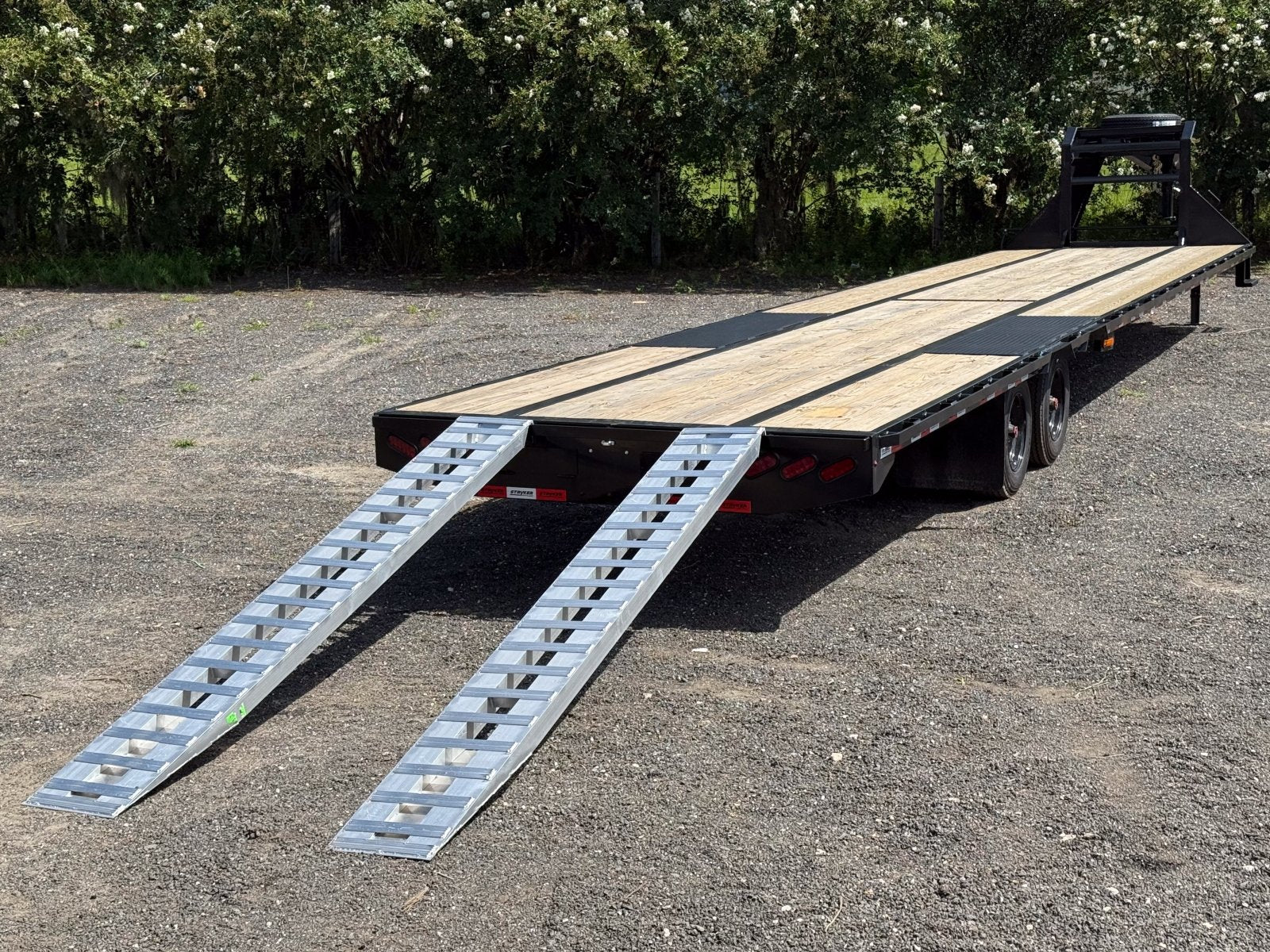

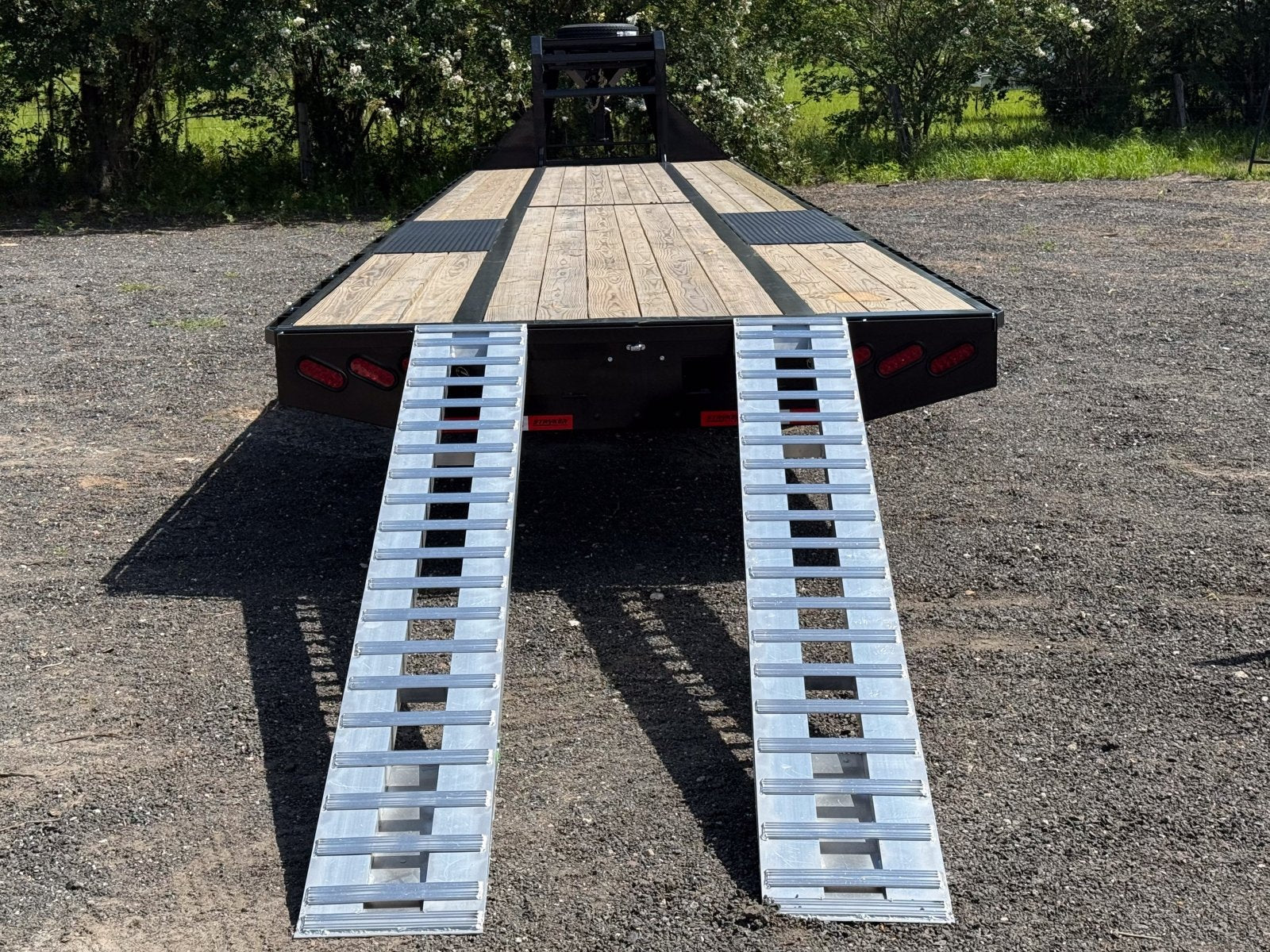

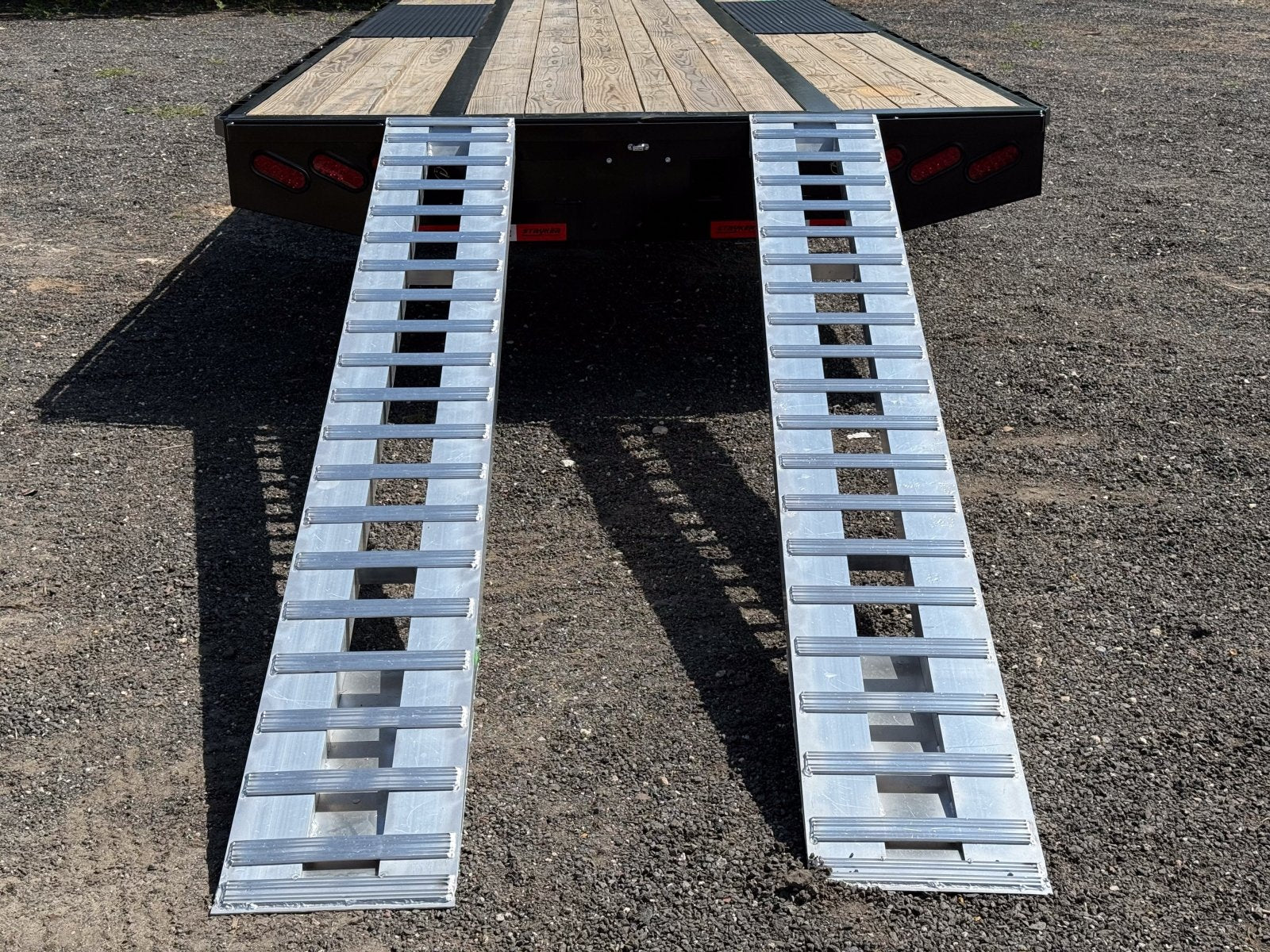

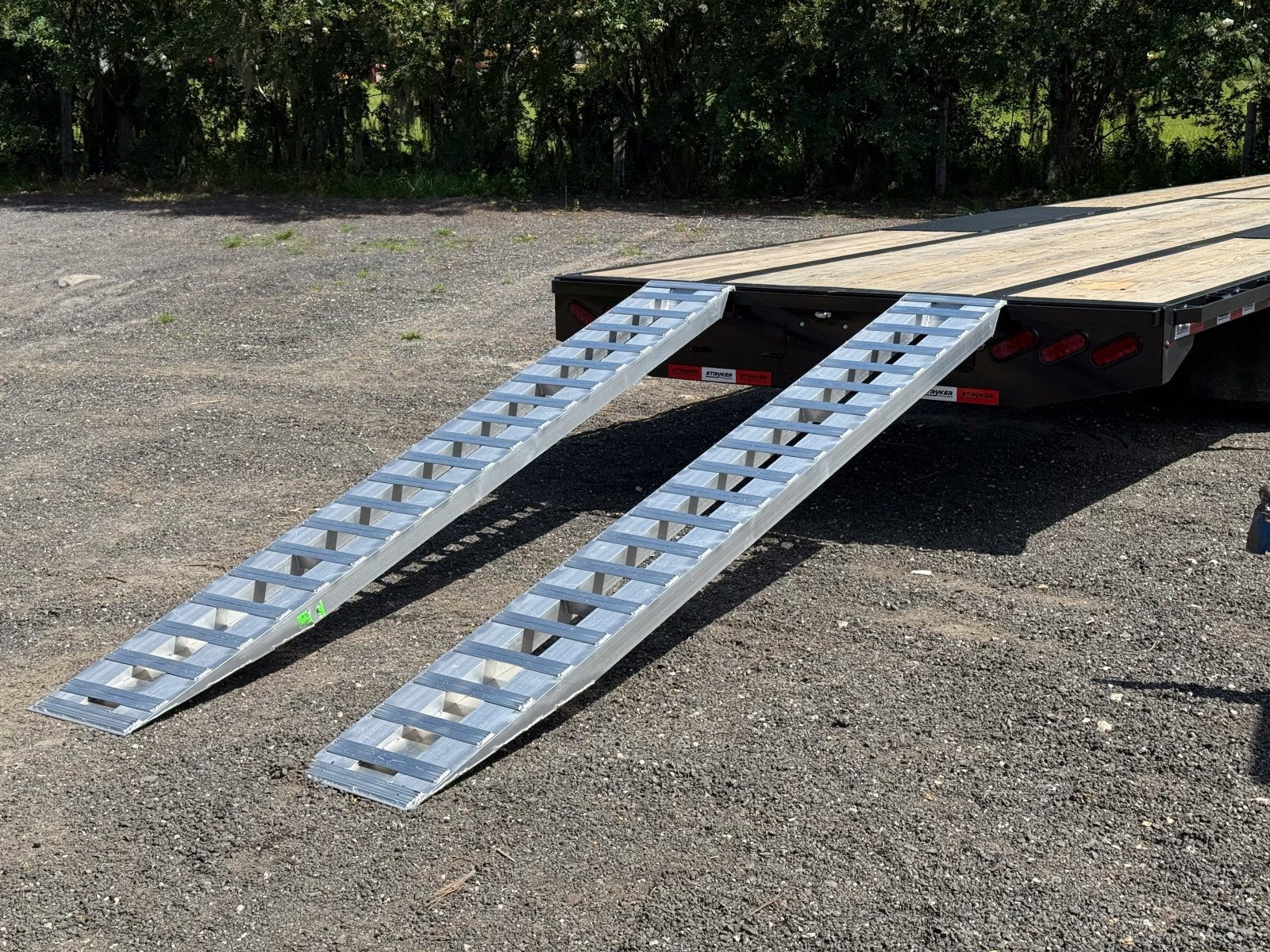

RAMPS:

10' Aluminum Slide In Ramps

ELECTRICAL & LIGHTING

REAR LIGHTS:

DOT Approved LED Lighting

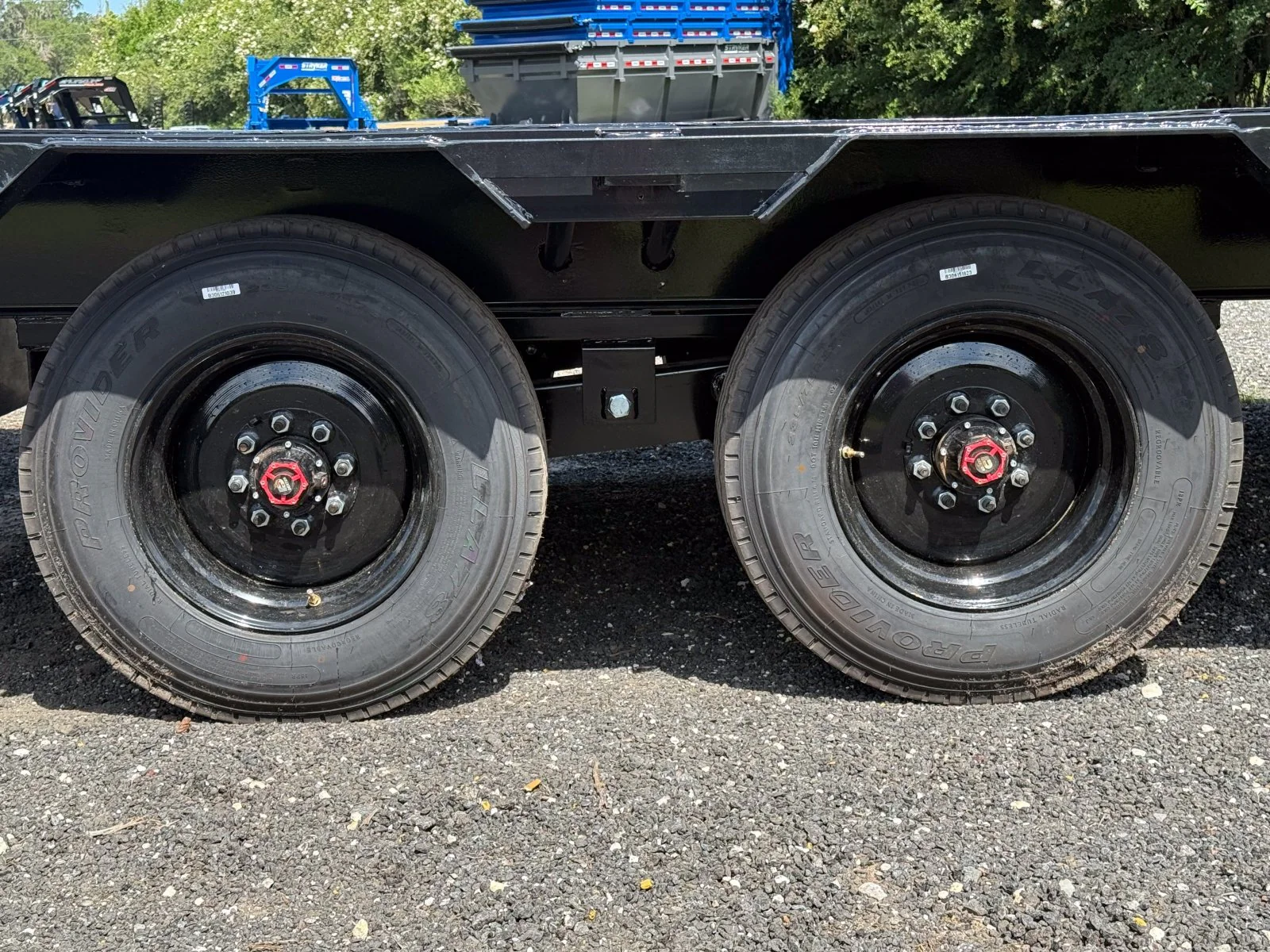

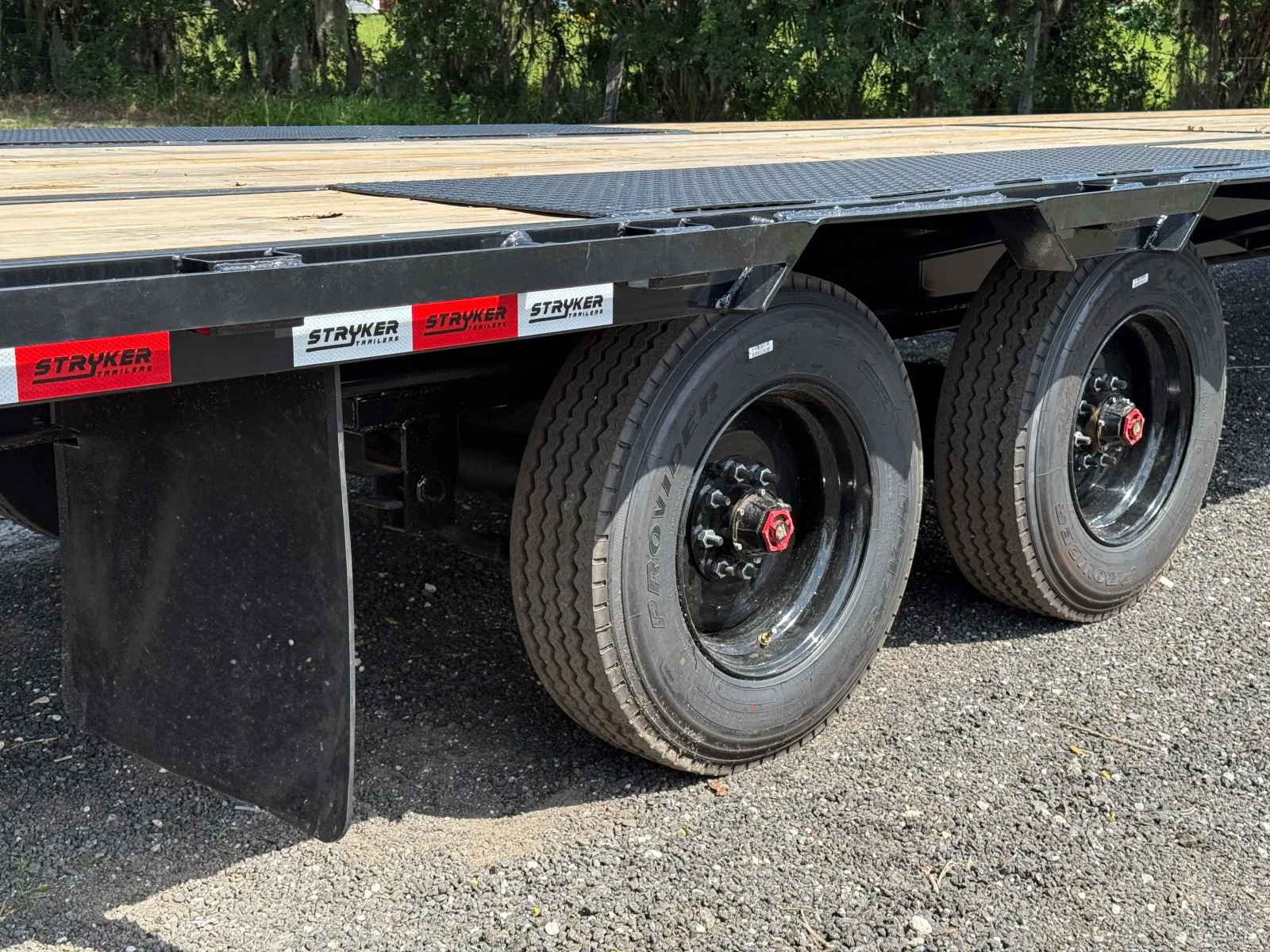

RUNNING GEAR

TIRES:

Radial Tires, ST235/75R17.5, 18 Ply

RIMS:

17.5" Black Wheels

AXLES:

2 - Single 10k Dexter Axles

BOLT PATTERN:

8 on 10.83"

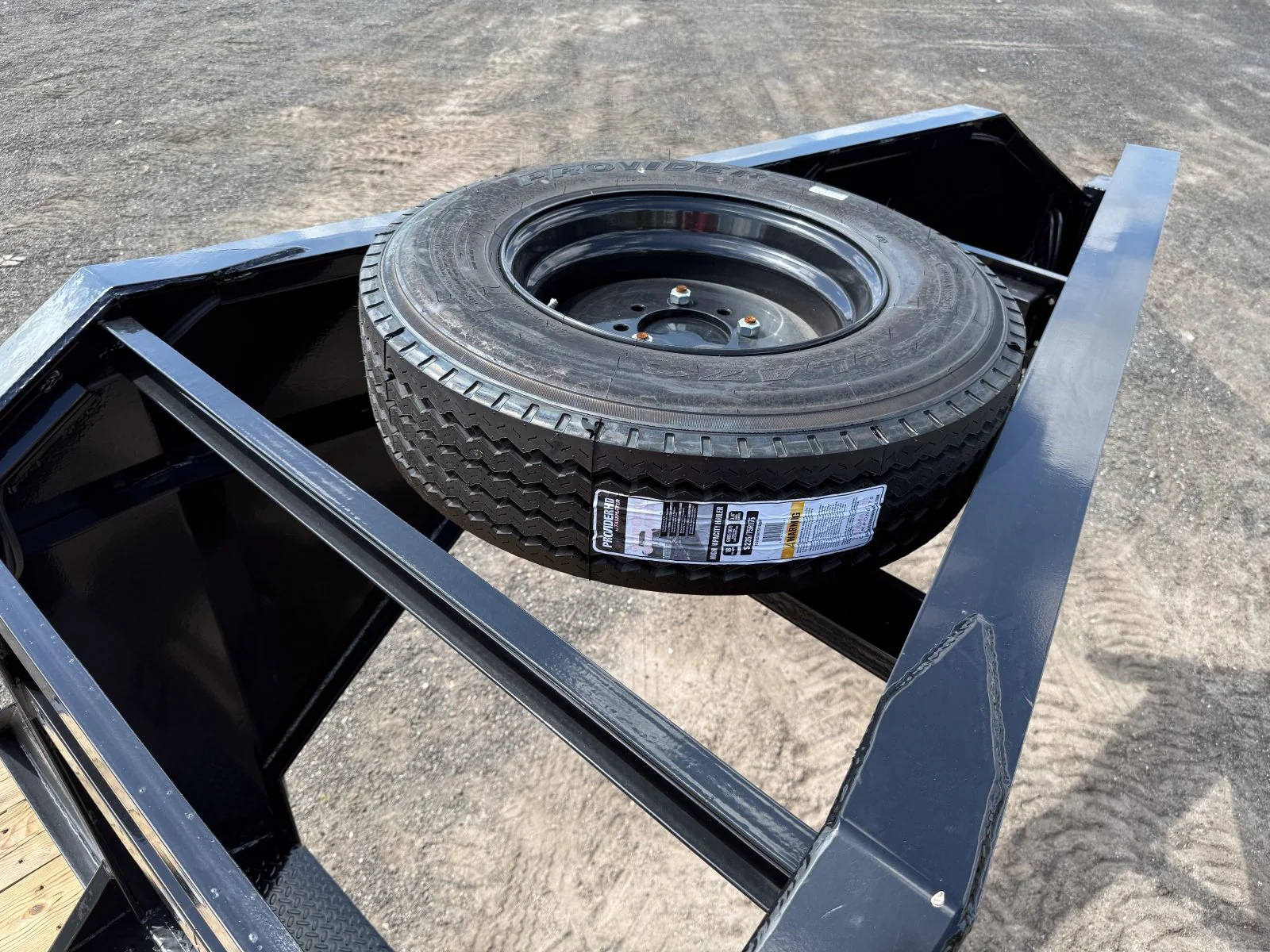

SPARE TIRE:

ST235/75R17.5 - Included

FRAME & CONSTRUCTION

MAIN FRAME:

14 lb Pierced I-Beam

CROSSMEMBERS:

3" Channel, 16" Spacing

FEATURE:

Flex Control Torque Tube
